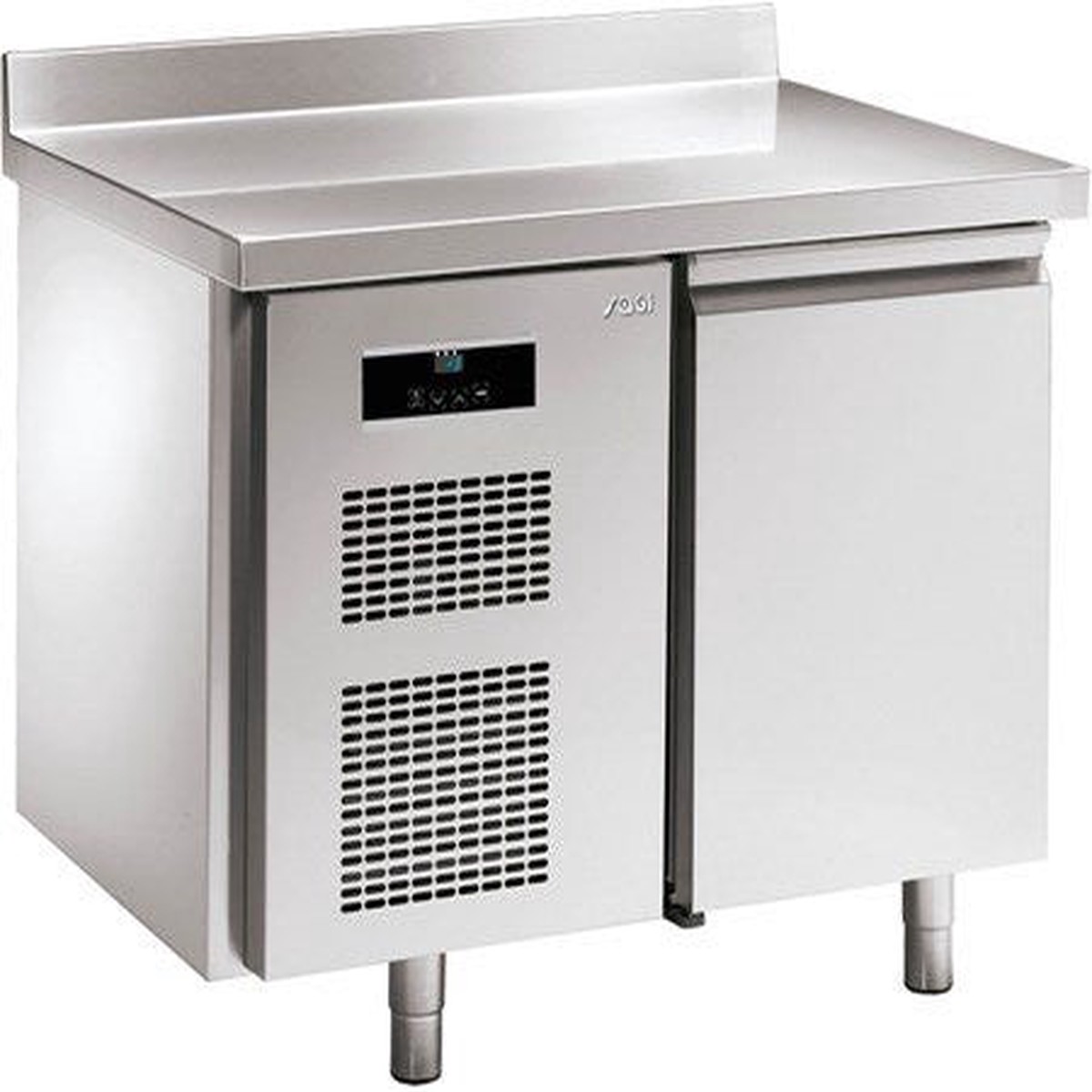

Sagi KBS11A Single door refrigerated bakery counter

Description

This Sagi KBS11A single door refrigerated bakery counter is ideal for sites with limited work top space – the 304 stainless steel work top is fitted with a splashback as standard but can be supplied without splash back, or if it is to be sited under an existing work top it can be supplied without (height being 830mm).

Features:

• European Energy Category C– Energy consumption/year kw/h = 1011

• Climate Class 5– Guaranteed temperature range -2/+8C – in a room temperature of 40C with 40% R.H as laid out by European reg’s – Door opening for 7 seconds, every 10 minutes – 72 openings in 12 hours. Maximum working ambient can be 43C

• Refrigeration system– External fan blown evaporator to the side, with front ventilation.

• Adjustable Humidity – Possibility of adjusting humidity to 75% or 90%

• Controls– Electronic controls with HACCP alarms and Hyper cold quick chilling mode

• Alarms– High and low temperature alarms for HACCP, Condenser high pressure alarm (usually means the condenser needs cleaning) and probe failure

• Capacity– Gross 193 Ltrs Nett usable 120 Ltrs – Will hold 7 off 600 x 400mm containers or shelves at 40mm centres

• Worktop is supplied with splashback as standard, but can be supplied without splashback and can be supplied without a worktop if it is to be sited under an existing worktop.

• Construction– 304 Stainless steel to exterior (including back) and interior. 50mm thick worktop with soundproofing lining

• Insulation– 55mm thick – CFC free polyurethane

• Intelligentdefrost– Automatic electric defrost only when needed reduces energy consumption with automatic re-evaporation of condensate

• Easy to clean– radiused internal corners with wash out drain and removable shelf racking

• Maintenance– Slide out condensing unit allows easy access to compressor, condenser and condenser fan motor for reduced maintenance time

• Supplied with 7 tray slides per door.

• Supplied with castors as standard

• Warranty – 5 year compressor warranty, with 2 years parts and labour (excluding door seals) – subject to regular maintenance agreements in place
