Description
- Three pump injection system
- 4 feet long
- Two splash curtains
- Processes approximately 2000, 2-1/2″ glasses/hr.
- Right-to-left or left-to-right operation
- Upper and lower wash and rinse arms
- Polypropylene conveyor, minimizing chipping
Description

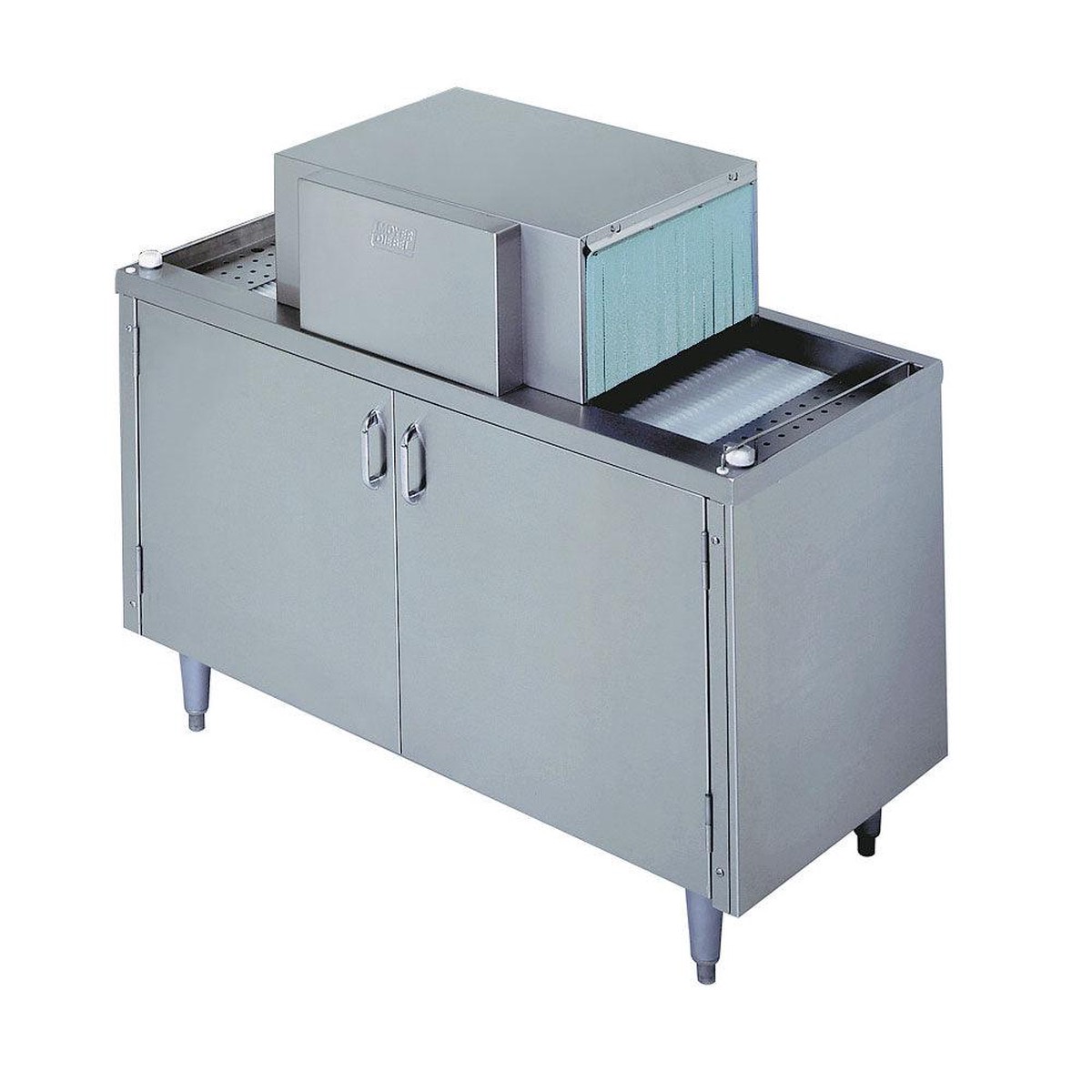

Keep your glassware spotless even in the most busiest restaurants with the Moyer Diebel SW400. Designed with a three pump injection system, it allows for precise calibrated pumps to inject the exact amount of chemical each time and the use of separate sanitizer and rinse aid resulting in water and chemical cost-savings. The upper and lower wash arms give your glassware a sparkling clean finish every time. There is also a final rinse that cools down your glassware for immediate use. The conveyor belt is made from polypropylene, which minimizes and virtually eliminates chipping from fine stemware. The two splash curtains minimize the amount of water splashes and with its powerful washing system the SW400 can clean up to 2000, 2 0.5 glasses per hour.
Read moreSpecifications
| Specifications | |
|---|---|
| Model | SW400 |
| Width | 48 Inches |
| Depth | 22 Inches |
| Height | 38.05 Inches |
| Wash Capacity | 2000 2.50″ glasses per hr. |
| Cold Water Consumption | 10.6 liters per min |
| Hot Water (initial fill) | 11.35 liters/min |
| Tank Heat Electric | 3 kW |
| Voltage | 208-230 V |
| Hertz | 60 Hz |
| Phase | 1 pH |
| Amperage | 15 Amps |
| Water Inlet | 0.5 Inches |
- NSF Certified This item meets NSF’s standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
- UL Canada & USA Certified by Underwriters Laboratories, this product has been stringently tested and meets US and Canada’s safety standards.
- CSA Certified This item has been certified by the Canadian Standards Association.
- 6-15P This product comes with a NEMA 6-15P plug.
FilesSpec SheetManual
