Description

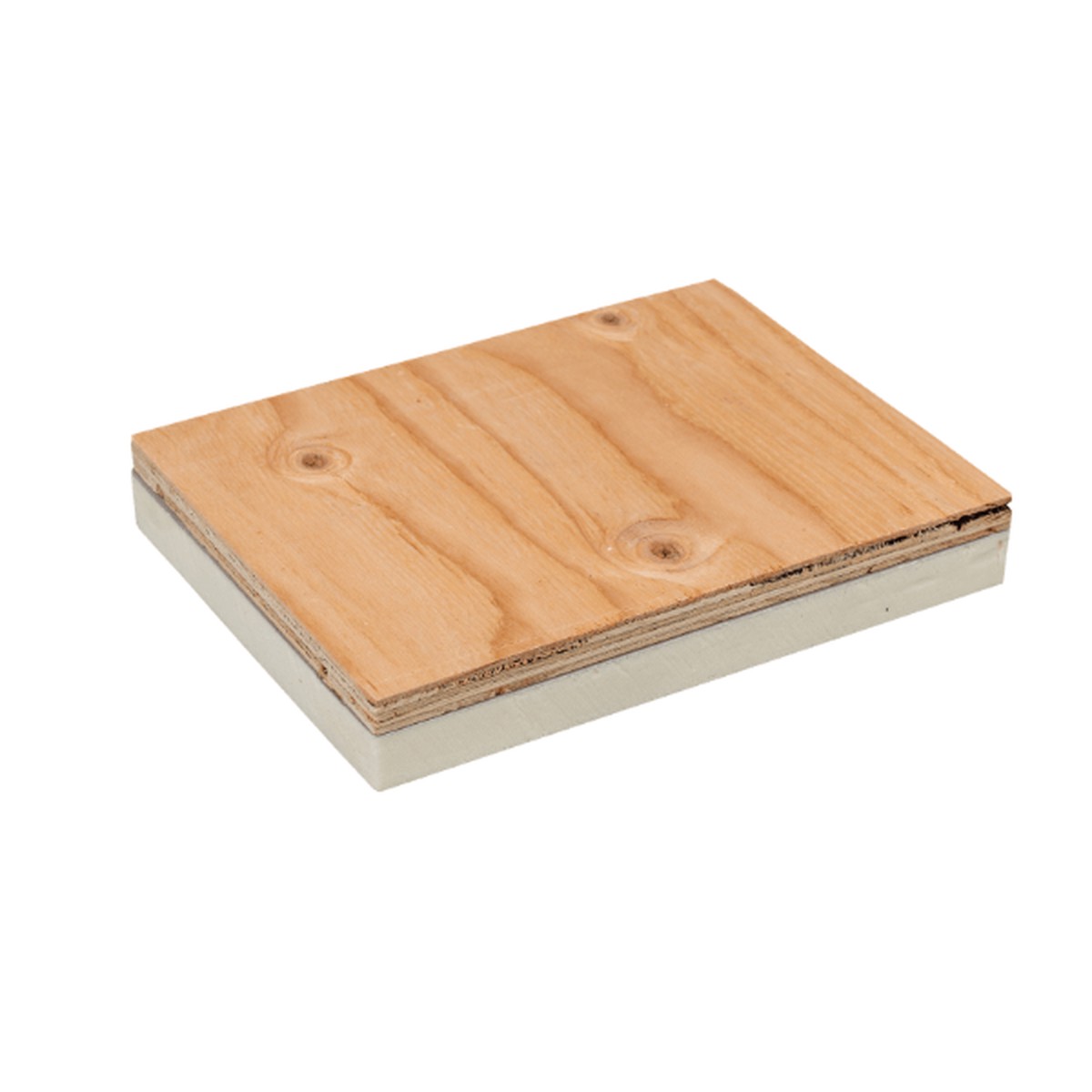

XciNB is an energy efficient rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and plywood on the other. It is designed for use in Type V commercial and residential wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.
| Thickness | R-Value | Sq Ft/Pallet | Sheets Per Pallet |
|---|---|---|---|
| 1.6″ | 6.8 | 960 | 30 |
| 2.1″ | 9.8 | 704 | 22 |
| 2.6″ | 12.9 | 576 | 18 |
| 3.1″ | 16.1 | 480 | 15 |
| 3.6″ | 19.3 | 416 | 13 |
Features & Benefits
- Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFCs or HCFCs; Virtually zero Global Warming Potential (GWP). The use of Xci products helps reduce the carbon footprint of buildings.
- Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
- Offers a superior combination of high insulating properties and mechanically attachable surface for claddings
- Mitigates thermal bridging from cladding fasteners
- Up to 2.6 thickness can be used as structural insualting sheathing when applied to wood studs. Contact Hunter Xci for shear values, wind loads and attachment requirements.
- Approved component of the Xci AEGIS Wall System
