Delta Unisaw 10-in 15A 230V Table Saw

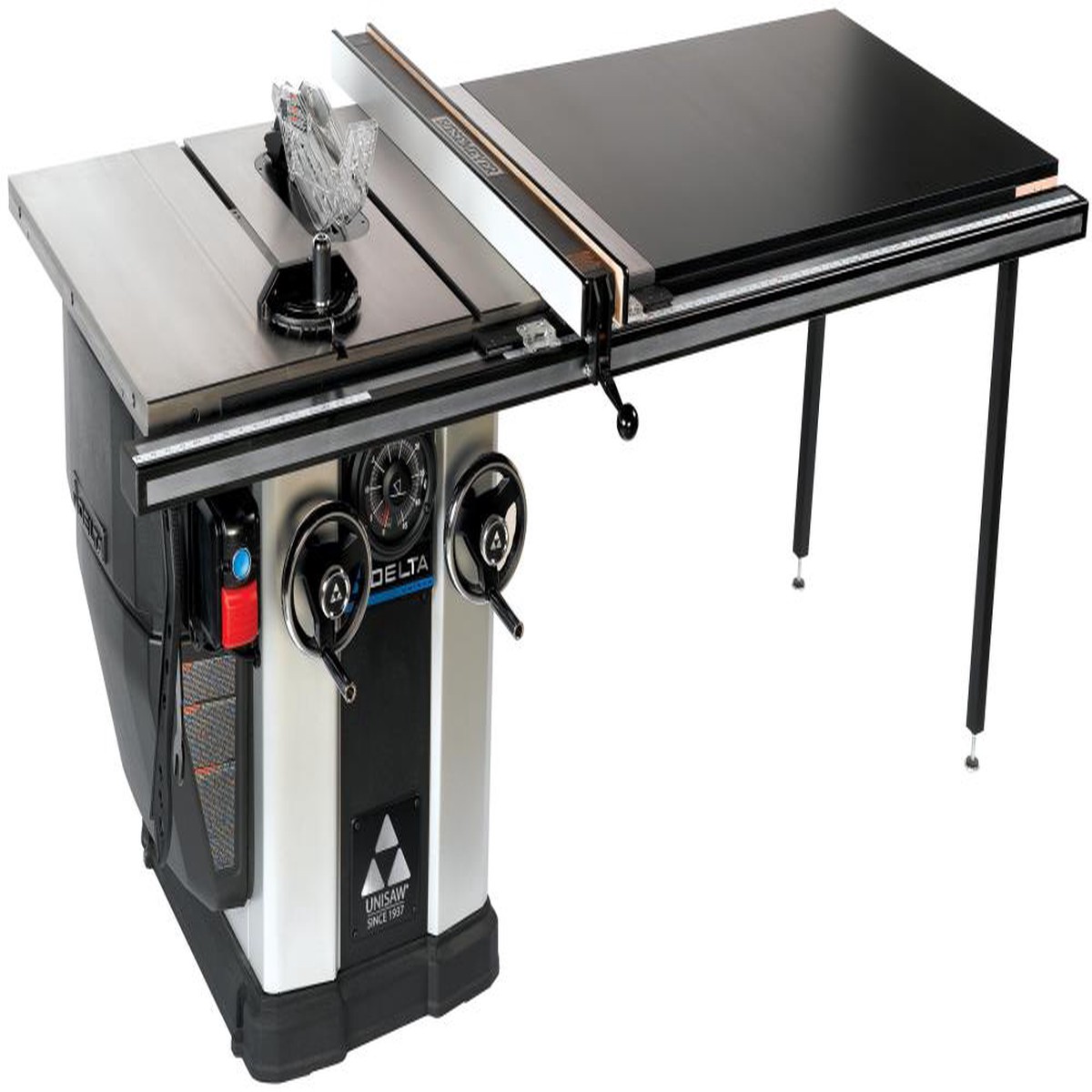

A pro-grade 10-inch cabinet table saw engineered for accuracy and dust control. The Delta UNISAW pairs a 3-HP, 230V motor with a BIESEMEYER fence and bi-level dust extraction to deliver smooth, precise cuts for serious woodworkers.
Key Features:
- Precision Fence System: BIESEMEYER fence with hairline pointer and built-in tape for fast, repeatable setups
- Clean Work Area: Bi-Level Dust Extraction system optimizes dust collection above and below the blade
- Smooth, Accurate Operation: Single-cast trunnion minimizes vibration for dependable accuracy
- Easy Adjustments: Sure-Lock dual front cranks simplify blade height and bevel settings
- Large Capacity: 52-in right rip capacity with improved tabletop geometry for stability and support
Specifications Table:
| Specification | Details |
|---|---|
| Series Name | UNISAW |
| Blade Material | Carbide-tipped |
| Arbor Diameter | 5/8-in |
| Bevel Capacity (Degrees) | 90 |
| Blade Size (Inches) | 10 |
| Cutting Depth (Inches) | 3.125 |
| Depth Control | Yes |
| Left Rip Capacity (Inches) | 13.5 |
| Maximum Depth at 45 Degrees (Inches) | 2.125 |
| Maximum Depth at 90 Degrees (Inches) | 3.125 |
| Right Rip Capacity (Inches) | 52 |
| Saw Blade Diameter | 10-in |
| Table Height (Inches) | 35 |
| Table Length (Inches) | 31 |
| Table Width (Inches) | 82 |
| Weight (lbs.) | 644 |
| Amps | 15 |
| Maximum Blade Speed (RPM) | 4300 |
| Dust Handling | Chute |
| Micro Adjust Rip Fence | Yes |
| Portable | No |
| Repetitive Cut Marking System | No |
| Spindle Lock | Yes |
| Voltage | 230 |
| Worm Drive | No |
| Warranty | 5-year limited |
| Motor Power | 3-HP, 1-phase, 60-Hz |
| On-board Storage | Yes |
| Fence System | BIESEMEYER with hairline pointer and built-in tape |
Frequently Asked Questions (FAQ):
Q: What power is required?
A: It uses a 3-HP motor on 230V, single-phase, 60 Hz; a dedicated 230V circuit is recommended.
Q: What blade size and arbor does it use?
A: It accepts 10-inch blades with a 5/8-inch arbor.
Q: What are the cutting capacities?
A: Maximum cut depth is 3.125 in at 90 and 2.125 in at 45; right rip capacity is 52 in and left is 13.5 in.
Q: Is the saw portable?
A: No, its a heavy cabinet saw designed for stationary shop use.
Q: What warranty is included?
A: 5-year limited warranty.
Industrial Precision, Studio Poise
This UNISAW anchors a workshop with sculptural strength and elegant restraint. The BIESEMEYER fence glides like couture tailoring, aligning every detail with exactitude. Style it with a matte-black outfeed table and warm walnut jigs to create a modern atelier vibe. For the makers studio that values beauty in performance, this is a cornerstone of luxurious craft.
Equip your shop with pro-level accuracy and dust controlchoose the Delta UNISAW today.
