Description
- 20 gallons (76 Liters) capacity
- 80,000 BTU/hour of power
- Steam jacket design on lower 2/3 of the kettle
- Temperature control from 165 to 275F / 74 to 135C
- Double wall kettler interior; fully-insulated exterior
- Electronic ignition with ignition indicator light
- Natural gas; Crank tilt
- 304 stainless steel construction
Description

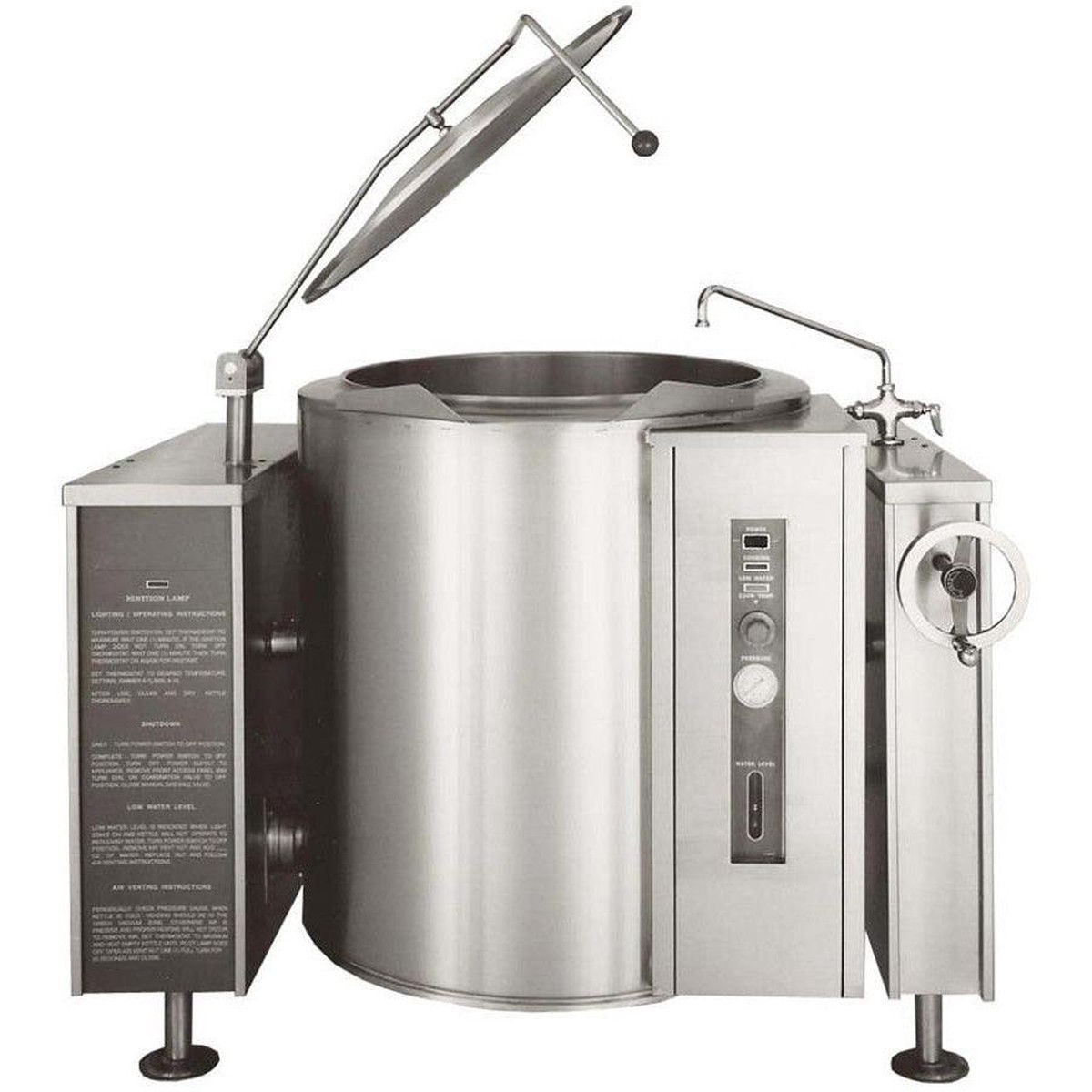

Cook faster, more consistent meals while saving more on energy by using this Crown 20-Gallon Gas Tilting Steam Kettle with Thermostatic Control.
This unit is ideal for large restaurants, hotels, and other commercial establishments because of its ability to quickly heat up large volumes of liquid. Steam kettles are the perfect appliance for cooking soup, delicate sauces, gravies, rice, meat, and much more.
Durable Interior and Exterior Stainless Steel Construction
A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle. The jacket enclosure shall contain factory sealed distilled water. The kettle interior on models 20 through 40 shall be stainless steel, type 316 for high acid content cooking. The kettle interior on 60 gallon models shall be type 304 stainless steel. Kettle exterior is fully insulated. The bottom of the kettle shall be of hemispherical design for superior heat circulation.
Thermostatic Control with Indicator Light
The recessed control panel is located on the front right side of the unit, in full view of the operator and easy to use. Standard controls include direct immersion thermostat for temperature control from 165F to 275F (74C to 135C), water sight glass, cooking light, pressure gauge and electronic ignition with ignition indicator light. Safety features include low water shut off with indicator light, pressure switch, pressure relief valve and 100% safety gas shutoff valve.
The kettle shall pivot on trunnions connected to the tilt mechanism and control consoles. The tilt mechanism shall allow the kettle to tilt past 90 forward for complete emptying. The console shall be drip proof, stainless steel clad and shall be supported on all welded 1-5/8″ (41 mm) stainless steel legs fitted with flange adjustable feet for securing to the floor.
This Crown 20-Gallon Gas Tilting Steam Kettle comes with:
- TPS-2 – Perforated strainer
- TVT-2 – 2″ Draw-off valve
- CH-60 – S/S Spring assist cover
- SF-18 – 18″ Single pantry faucet
Read moreSpecifications
| Specifications | |
|---|---|
| Model | GLT-20 |
| Length | 48.13 Inches |
| Width | 40.5 Inches |
| Height | 40.13 Inches |
| Capacity | 20 Gallons / 76 Liters |
| Kettle Jacket Size | 2/3 of Kettle |
| Temperature Range | 165 – 275F / 74 – 135C |
| Total BTU | 80,000 BTU |
| Energy Type | Natural Gas |
| Control Type | Thermostat |
| Installation Type | Freestanding / Floor |
| Material | 304 Stainless Steel |
| Product Type | Steam Kettle |
